MouseBlocker 1000x

Description

Coverage Area

The MouseBlocker 1000X is a very high output device covering up to 1000 square feet with a clear line of site. Since the unit operates off sound, the noise will not go thru walls or solid objects. Place the unit with speakers facing open space free of obstructions.

Operation Methods

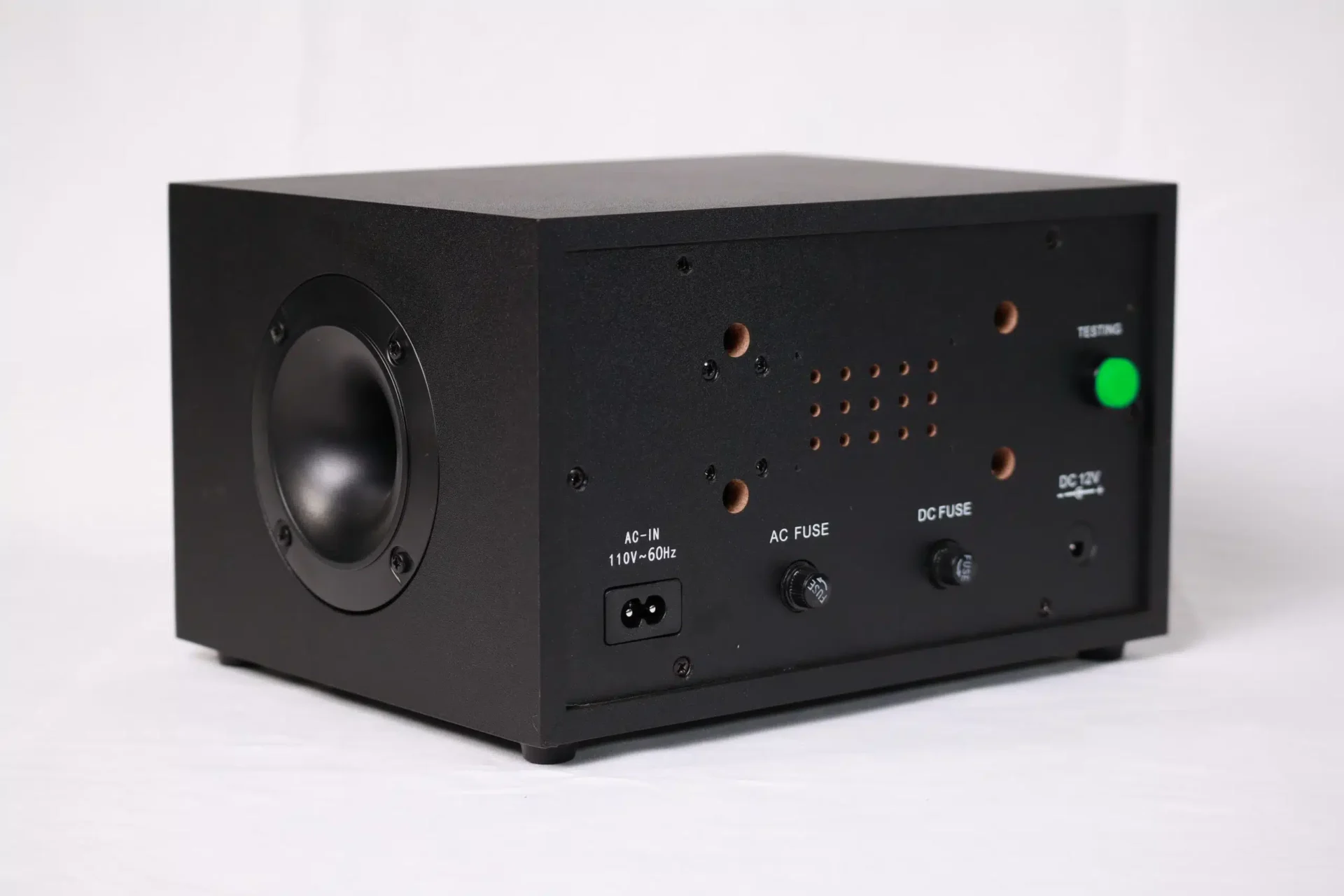

Plug one end of the power cord into the power socket on the left rear side of the unit. Next, plug the other end of the power cord into any available 110v power outlet. After plugging the unit into power, it will start working immediately. The green power light should be on solid and the blue ultrasonic light should be flashing/blinking according to the sound output.

To test the output, click the green test button on the back of the unit. Pressing this button will amplify the ultra sonic noise to an audible level. This noise is very loud and confirms the unit is working properly.

Precautions

1. Never use the MouseBlocker 1000X outdoors, in high temperature locations, or in damp locations.
2. The MouseBlocker 1000x should be used continuously without stopping to be effective.
3. There should be no obstructions in front of the unit. Ultrasonic noises will not pass through hard objects.
4. There are four loud speakers installed in three directions so the device should be installed along a wall,with the back facing a wall for optimal effectiveness.
5. It is normal if the device gets warm to the touch.
6. The effects of this unit will be seen immediately as soon as the device is powered on. The unit will be mosteffective after using it continuously for 3-4 weeks. Sometimes the mice may be more active during thebegining of use showing that the rodents are irritated. After using the unit for a prolong period of time the

   mice will begin to dissapear.

Unit Technical Specifications

• AC Power Voltage: AC 120v 60hz
• Power Consumption: 25Watts
• Frequency Coverage: 25-45Khz Intermittent at 160 Seconds
• Made in China EPA Est No: 95016-CHN-1
• Unit Dimensions: 10″Wide x 6″Tall x 8″Deep
